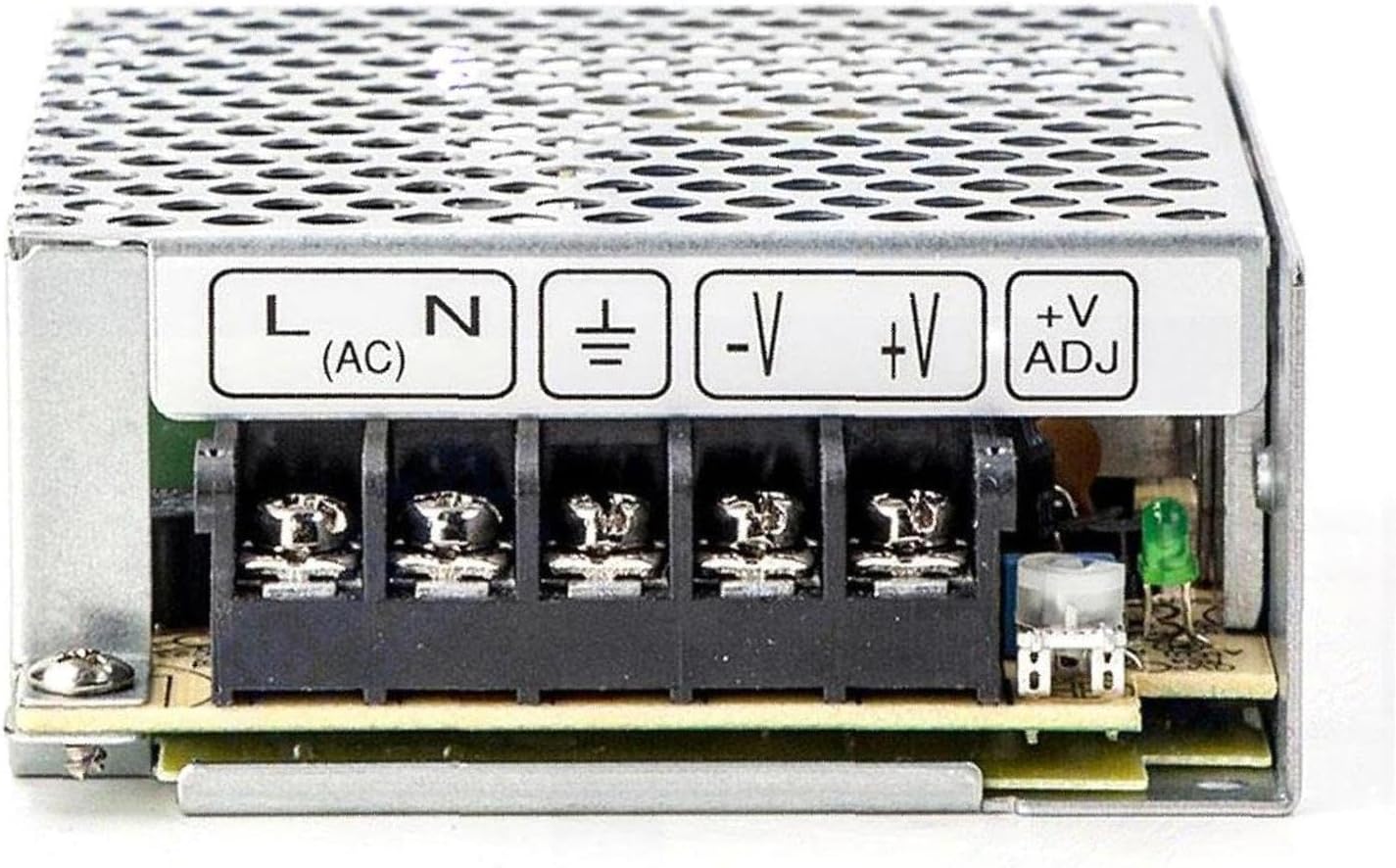

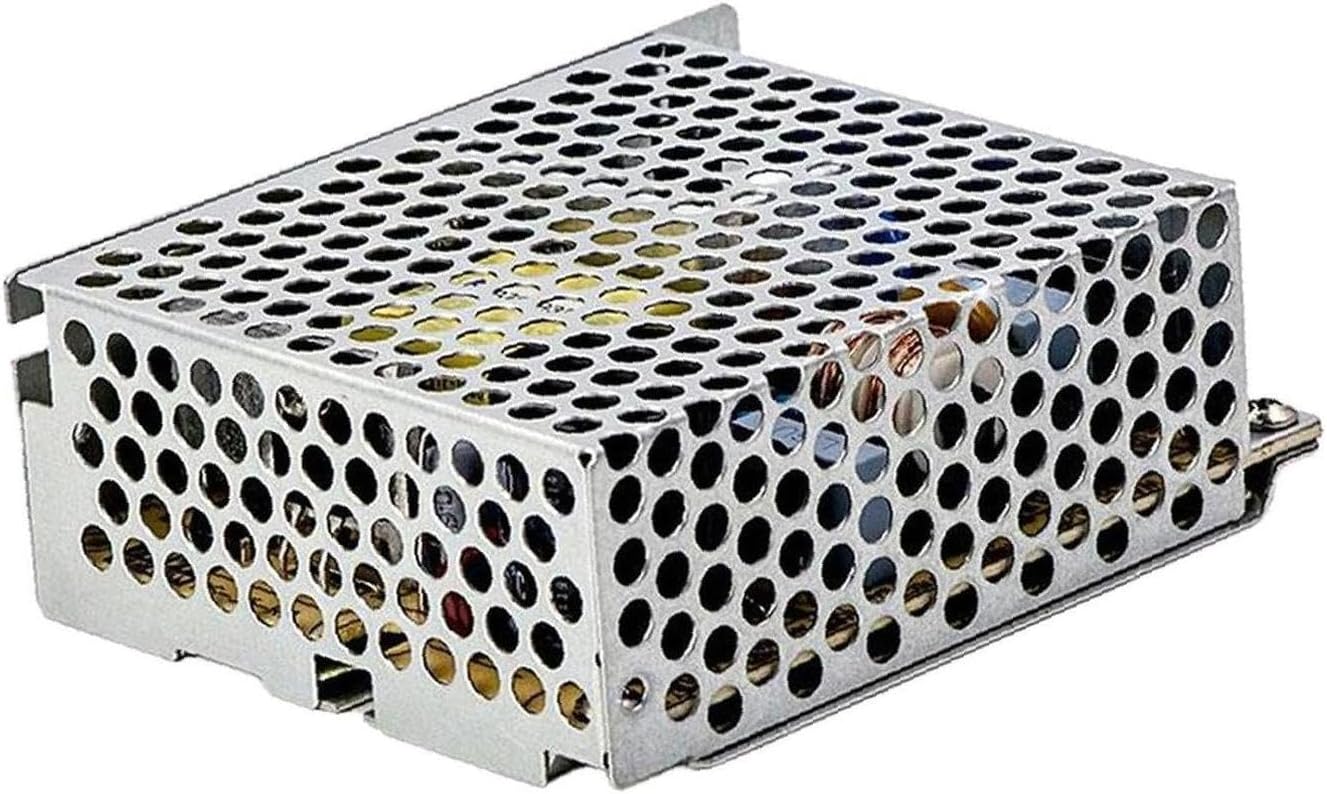

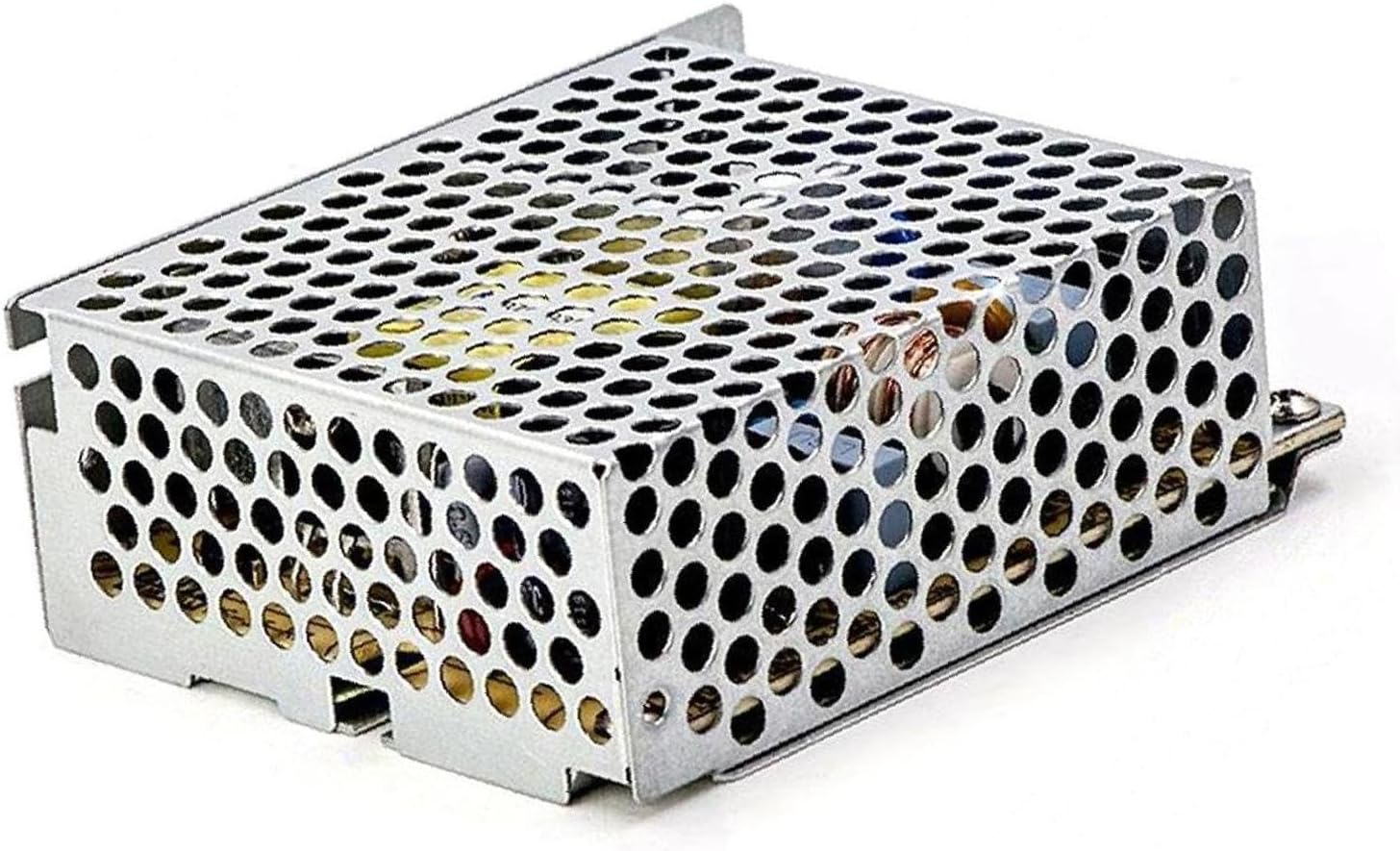

RS-35-12 12V 3A 35W AC-DC Single Output Switching Power Supply, Reliable and Safe for Industrial Automation, Control Systems, Electrical Equipment
Product details
| Management number | 221190955 | Release Date | 2026/05/03 | List Price | US$9.20 | Model Number | 221190955 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The RS-35-12 is a reliable and efficient 35W single-output AC-DC switching power supply that delivers a stable 12V DC output with a current rating of 3A. Designed for a wide range of applications, including industrial automation, control systems, and electrical equipment, this power supply offers excellent performance and safety features.Key Features:Universal AC input voltage range: 85264VAC or 120373VDCWithstands 300VAC surge input for 5 secondsHigh efficiency up to 81%Low no-load power consumption: <0.5WProtections: Short circuit / Overload / OvervoltageCooling by free air convection100% full load burn-in testLED indicator for power onOperating temperature: -4℉ to 158℉Withstand 5G vibration testSafety approvals: UL/TUV/CB/CEEMC compliance: EN55022 (CISPR22) Class B, EN61000-3-2, -3Dimensions: 3.943.231.42 inchesWeight: 0.7 lbsApplications:Industrial automation machineryIndustrial control systemsMechanical and electrical equipmentElectronic instruments, devices, and apparatusHousehold appliancesThe RS-35-12 is a reliable and cost-effective solution for various applications requiring a stable and efficient power source. Its compact size, safety features, and high performance make it an ideal choice for demanding industrial and commercial environments.
- Reliable Performance: This AC-DC power supply provides a stable 12V/3A output with 120mVp-p ripple and operates within a wide input voltage range of 85~264VAC or 120~373VDC. The MTBF is greater than 249,000 hours, ensuring a long and stable lifespan.
- Safety Features: Built-in protections against short circuiting, overload, and overvoltage ensure safe operation. This unit can withstand 300VAC surge input for 5 seconds and complies with UL60950-1 and EN60950-1 safety standards.
- Energy-Efficient Design: With an efficiency of 81% and a no-load power consumption of less than 0.5W, this power supply minimizes energy waste and reduces operating costs.
- Compact and Easy Installation: Featuring a compact size of 3.943.231.42 inches, this power supply is easily integrated into various systems. The unit is cooled by free air convection.
- Wide Range of Applications: This power supply is suitable for a variety of applications, including industrial automation machinery, industrial control systems, mechanical and electrical equipment, electronic instruments, devices, household appliances and more. It can withstand temperatures ranging from -4℉ to 158℉ and vibration up to 5G.
| Brand | FerroFab |
|---|---|
| Wattage | 35 watts |
| Form Factor | SFX |
| Item Weight | 0.66 Pounds |
| Manufacturer | FerroFab By Mean Well |
| Model Number | RS-35-12 |
| Cooling Method | Air |
| Current Rating | 3 Amps |
| Output Wattage | 36 Watts |
| Item Dimensions | 3.9 x 3.23 x 1.42 inches |
| Mfr Part Number | RS-35-12 |
| Maximum Input Voltage | 264 Volts (AC) |
| Minimum Input Voltage | 85 Volts (AC) |
